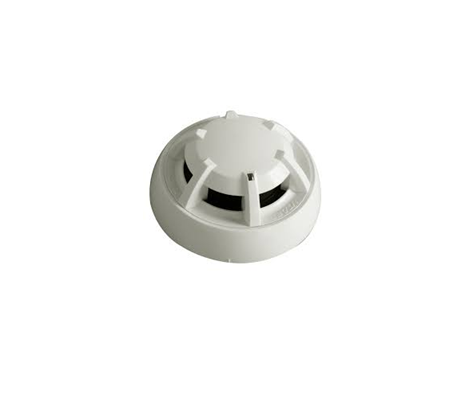

VC-6623 Conventional Optical Smoke Detector
VC-6623 Conventional Optical Smoke Detector
Key Features
* 360° visible LED
* High performance on slow burning or smoldering fire
* Build-in program of Drift compensation
* Intelligent algorithm and judgment
* Special chamber against interferences
* Remote Indication Output
* Magnetic test available
* Talented plug-in structure without screw
* Used in conventional line only
* LPCB approed to EN54-7 and CE approved.
Description
SPECIFICATION
* Operating Voltage: DC9V–28V
* Standby Current: ≤60µA
* Alarm Current: 10mA ≤ I ≤ 50mA
* Indicator: Flash as Standby, Illuminate as Alarm
* Remote Indicator Output: 10kΩ resistor required
* IP Rating: IP32
* Temperature: -10°C to +55°C
* Humidity: ≤95% non-condensing
* Material of Enclosure: ABS
* Dimension: D-100mm, H-43mm
* Weight: About 120g
* Base: VB-6611
