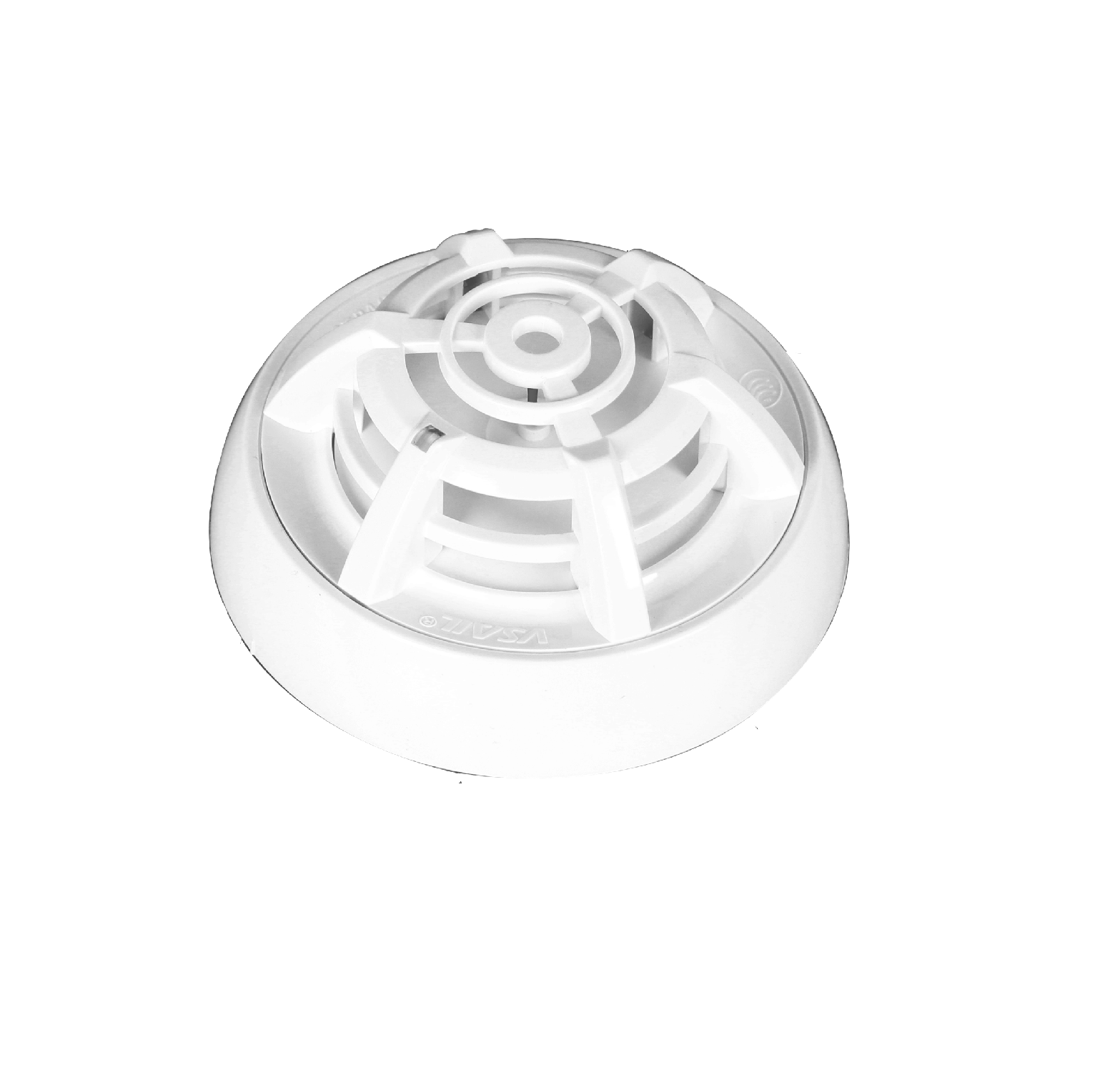

VC-6633 Conventional Dual Heat Detector
VC-6633 Conventional Dual Heat Detector
Key Features
* 360°visible LED
* Thermal sensor with high sensitivity
* Classification of A2R
* Principle of Fixed Temperature and Rate of Rise
* Remote Indication Output
* Magnetic test available
* Talented plug-in structure without screw
* Used in conventional line only
* LPCB approval to EN54-5. CE Approved
Description
SPECIFICATION
* Operating Voltage: DC9V–28V
* Standby Current: ≤60µA
* Alarm Current: 10mA ≤ I ≤ 50mA
* Classification: A2R
* Indicator: Flash as Standby, Illuminate as Alarm
* Remote Indicator Output: 10kΩ resistor required
* IP Rating: IP32
* Temperature: -10°C to +55°C
* Humidity: ≤95% non-condensing
* Material of Enclosure: ABS
* Dimension: D-100mm, H-43mm
* Weight: About 120g
* Base: VB-6611
