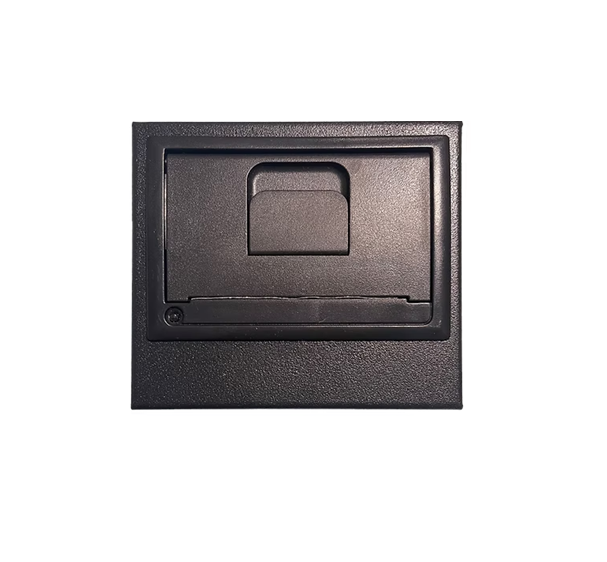

VI-6547 Printer
VI-6547 Printer
Key Features
*With line thermal printing.
*With self-check function and high-resolution character image.
*With serial interface, only one cable connected to the host computer.
*With metal case, which can be arranged on the upper part of the controller and fixed with cable gland.
Description
SPECIFICATION
*Operating voltage: DC5~8V
*Maximum current: ≤ 3A
*Interface: RS232 interface
*Operating temperature: 0℃～ +50℃
*Ambient humidity: ≤90%GH (40±2℃) without condensation
*Status indication: The indicator is always on during normal monitoring.
*Printing method: Line thermal printing
*Dimensions: 90mm×80mm×50mm
*Printing paper: thermal sensitive paper, with the width of 57.5±0.5mm
*Installation mode: exposed installation
