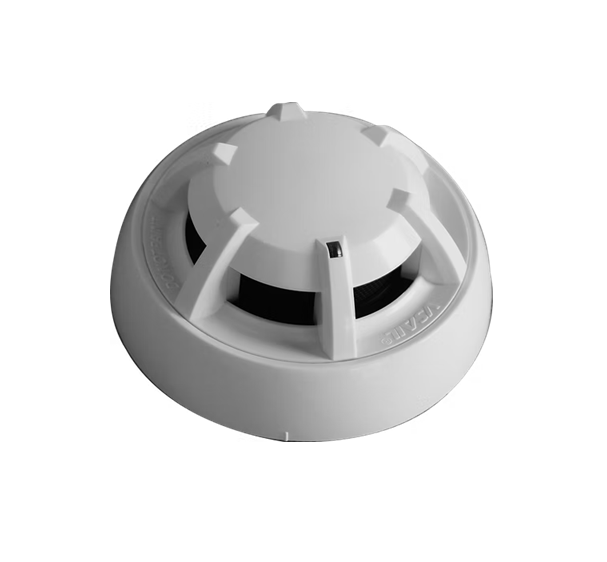

VI-6627 Addressable Smoke Detector
VI-6627 Addressable Smoke Detector
Key Features
* Electronic addressing
* 360° visible LED
* Four sensitivity modes
* High performace on slow burning or smoldering fire
* Build-in program of Drift compensation
* Digital algorithm and judgment
* Special chamber against interferences
* Talented plug-in structure without screw
* CE approved and LPCB approval to EN54-7
Description
SPECIFICATION
* Operating Voltage: DC16V–28V
* Standby Current: ≤0.5mA
* Alarm Current: ≤1.0mA
* Sensitivity: 4 levels
* Indicator: Flash as Standby, Illuminate as Alarm
* IP Rating: IP32
* Temperature: -10°C to +55°C
* Humidity: ≤95% non-condensing
* Material of Enclosure: ABS
* Dimension: D-100mm, H-43mm (without base)
* Weight: 120g
* Base: VB-6617
