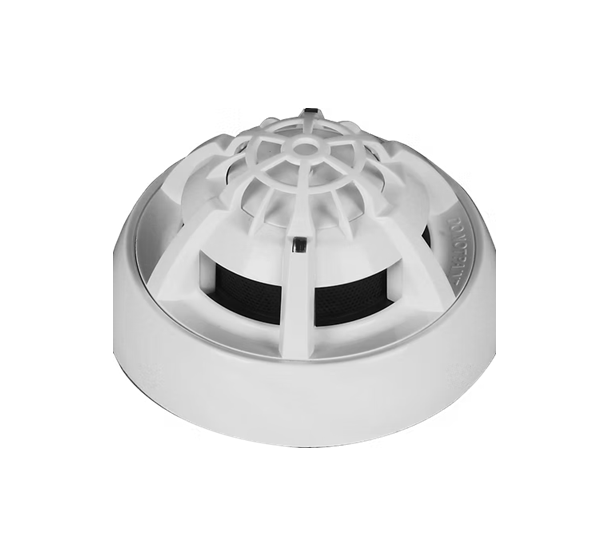

VI-6647 Addressable Multisensor Detector
VI-6647 Addressable Multisensor Detector
Key Features
* Electronic addressing
* 360° visible LED
* Principle and function same as VI-6627 & VI-6637
* One Sensitivity Mode 2
* Classification of A1R and A2
* Smoke chamber against interferences
* Thermal sensor with high sensitivity
* Build-in Drift compensation
* Talented plug-in structure without screw
* LPCB approval to EN54-5 & EN54-7
Description
SPECIFICATION
* Operating Voltage: DC9V–28V
* Standby Current: ≤60µA
* Alarm Current: 10mA ≤ I ≤ 50mA
* Indicator: Flash as Standby, Illuminate as Alarm
* Remote Indicator Output: 10kΩ resistor required
* IP Rating: IP32
* Temperature: -10°C to +55°C
* Humidity: ≤95% non-condensing
* Material of Enclosure: ABS
* Dimension: D-100mm, H-43mm
* Weight: About 120g
* Base: VB-6611
