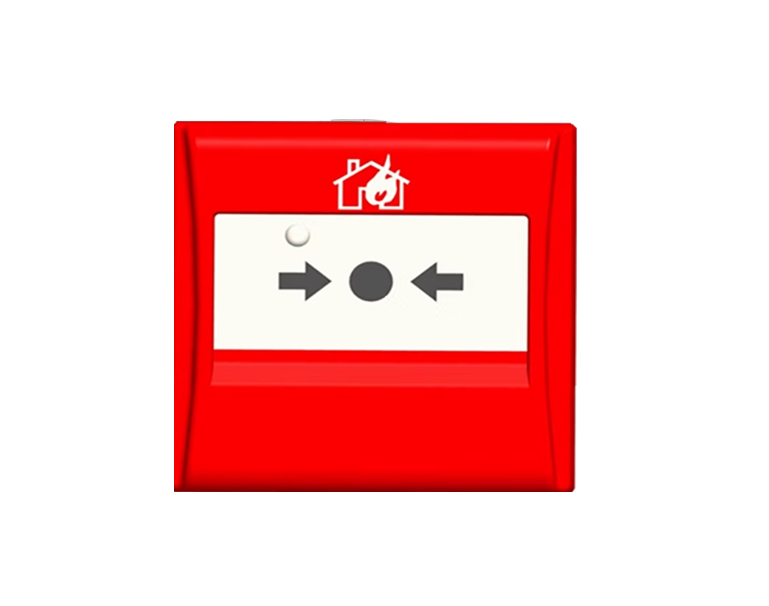

VI-6657 Addressable Manual Call Point
VI-6657 Addressable Manual Call Point
Key Features
* Electronic addressing* Non-breaking and Resettable
* Flush-mount or Wall-mount
* Plug-in structure and easy installation
* Stylish appearance and low power consumption
* CE approved and LPCB approval to EN54-11
Description
* Operating Voltage: DC16V–28V
* Standby Current: ≤0.5mA
* Alarm Current: ≤1mA
* Indicator: Red, illuminates in alarm
* Class: Type A, indoor use
* IP Rating: IP43
* Temperature: -10°C to +55°C
* Humidity: ≤95%, non-condensing
* Material of Enclosure: ABS
* Dimension: 88×88×58mm (with back box)
88×88×23mm (without back box)
* Weight: About 160g (with back box)
About 107g (without back box)
