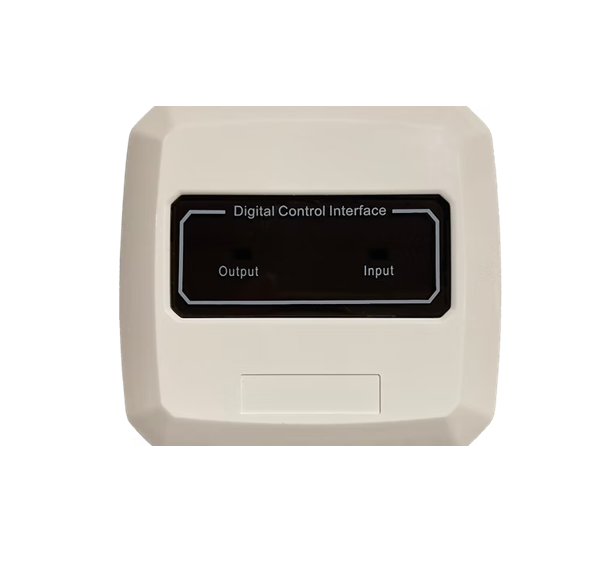

VI-6727 Addressable Control Module
VI-6727 Addressable Control Module
Key Features
*Addressable Input and output module
*Easy Installation
*Output relay capacity :30VDC/1A
*Input circuit line detection with EOL resistor
*CE approved and LPCB approved to EN 54-18:2005
Description
SPECIFICATION
*Operating Voltage: 16-28V(Modulated-pulse)
*Standby Current: ≤0.5mA
*Alarm Current: ≤1.0mA
*Wiring: Two-wire（non-polarized）
*Temperature range: -10℃～50℃
*Humidity: ≤95%RH, （40±2℃）No condensation
*Remote Control Output Indication: Output LED Emitting
*Signal inputting Indication: Input LED Emitting
*IP Rating: 32
*Installation Base: VB-6618
*Weight: Module 65g, Base 58g
