Key Features

* Supports a maximum of 4 loops for Class A wiring or 8 loops for Class B wiring.
* Each loop accommodates up to 256 mixed-type devices, including detectors, call points, sounders, and modules.

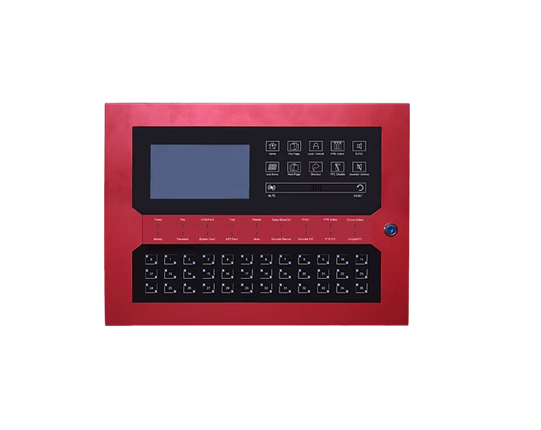

* First panel globally to use acrylic material as a front surface for interactive buttons.
* Equipped with a 7-inch touchscreen for a graphical display and user-friendly control.
* Terminal ports are available for field programming using a PC or laptop, with options for USB plug-ins and SD card updates.
* Built-in boards provide two sounder outputs and six programmable I/O circuits.
* Features 36-zone indications with red and yellow LEDs for fire, fault, and isolate statuses.
* Records up to 10,000 event logs across ten categories, with a capacity of 1,000 logs per category.
* Utilizes a built-in RISC CPU based on the ARM platform, delivering high-speed, reliable performance with low power consumption.
* Modular structural design ensures that each board operates independently with a separate CPU, minimizing impact from potential damage.
* Supports both Class A and Class B wiring methods.
* Reports from field devices to the panel occur within 1 second upon fire detection.
* Includes multiple protection methods, such as safeguarding against short circuits in loops and power lines, surge interruptions, lightning strikes, and transient impulses.
* Specifically designed to remain unaffected by earth faults.
* Reserved ports for TCP/IP and CANBus communication protocols.
* Reliable and extendable communication via CANBus protocol up to 10 kilometers, using electrical cables, fiber optics, or coaxial cables.
* Supports a True Peer-to-Peer Network of up to 128 panels, allowing cross-viewing and operational control from any panel in the network.
* System settings and information are recorded within the network, ensuring operational continuity in case of system paralysis in one panel.
* Fully capable of remote control, testing, configuration, and integration with other building management systems through internet connectivity.
* Default language is English, with flexibility for multi-language use.
* CE approved and LPCB approved to comply with EN54-2, EN54-4, and EN54-13 standards, along with 10 additional standard options.
