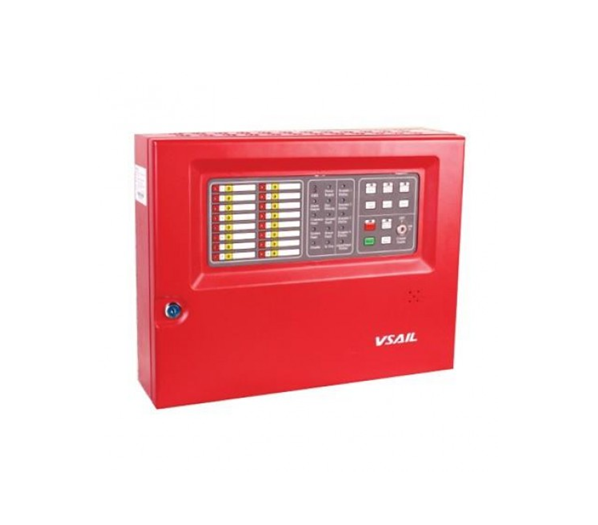

VC-6831 Conventional Fire Alarm Control Panel
VC-6831 Conventional Fire Alarm Control Panel
Key Features
* Offers high-quality and reliable performance.
* Supports configurations with 2, 4, 8, or 16 detection zones.
* Accommodates up to 25 devices per zone.
* Includes up to 4 programmable supervised sounder circuits.
* Equipped with LED indicators and key buttons for easy operation.
* Provides one-man walk-test functionality and zone isolation capabilities.
* Features a switchable day/night mode for flexible operation.
* Includes a fault buzzer mute option.
* Fully programmable through simple menu options.
* Allows keypad entry to access a wide range of engineering functions.
* Offers an optional signal output board for system extension.
* Supports three access levels configurable via a key switch.
* Designed with SMT and microprocessor-controlled architecture.
* Utilizes a two-wire system to minimize cabling and simplify installation.
* Compatible with a wide range of conventional field devices.
* Certified with CE approval, LPCB approval, meeting EN54-2 and EN54-4 standards.
Description
* Power Supply: AC220V/50Hz or AC110V/60Hz
* Operating Voltage: DC15V~28V
* Standby Current: ≤6mA
* Action Current: 400mA
* Passive Output: DC24V/1A
* Sounder Circuit: DC18V~28V, 300mA
* Auxiliary Power : DC18V~28V, 500mA
* Temperature: 0℃~40℃
* Humidity ≤95%,non-condensing
* Dimension: 430*330*105mm
* Installation: Wall-mount
* Batteries: Two DC12V/7Ah
* Cable: 1.5mm² or above shield cable
